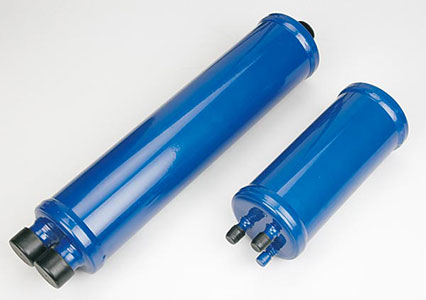

Oil Separators
- Hermetic welded construction with steel oil return system(1/4"or 3/8"SAE connectors)
- Trusty shut-off of needle valve
- Surface corrosion resittant static electrical painting procedure protecting the shell from the rust
- Can renduce the vibration and noise of system high pressure end.
- Maximum working pressure:3.5MPa

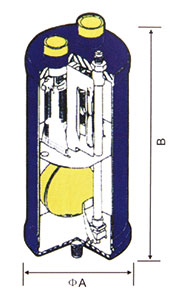

| ITEM NO. | CONNECTIONS | DIMENSIONS | |
| ODF(inch) | A(inch) | B(inch) | |
| RD55824 | 1/2 | 4 | 10.25 |
| RD55855 | 5/8 | 4 | 14.25 |
| RD55877 | 7/8 | 4 | 17.75 |
| RD55889 | 1-1/8 | 4 | 21.00 |
| RD559011 | 1-3/8 | 4 | 21.25 |
| RD569011 | 1-3/8 | 6 | 15.63 |
| RD569213 | 1-5/8 | 6 | 18.63 |
| RD569417 | 2-1/8 | 6 | 19.18 |
