Vibration Insulators

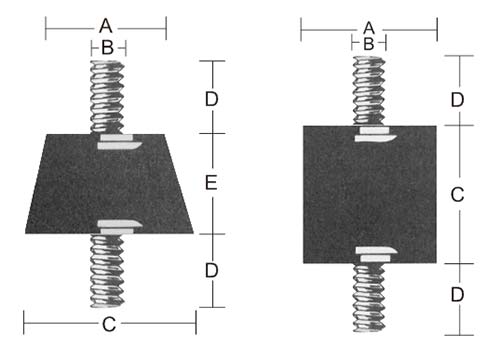

| ITEM NO. | DIMENSIONS | THD | MAX.LOAD IN POUNDS | |||||
| A | B | C | D | E | COMPRESSION | SHEAR | ||
| VI-801 | 1-3/16 | 5/16 | 1-5/8 | 5/8 | 1-1/2 | 18 | 60 | - |
| VI-802 | 1-3/8 | 5/16 | 1-5/8 | 5/8 | 1.0 | 18 | 100 | - |
| VI-803 | 1.0 | 5/16 | 1.0 | 5/8 | - | 18 | 40 | 10 |
| VI-804 | 1.0 | 1/4 | 3/4 | 1/2 | - | 20 | 50 | 10 |
