TFK Series BI-Flow Liquid Line Filter Drier
Product Introduction
- TFK series Bi-Flow liquid line filter-drier, using high-quality compression of small spherical particles sintered desiccant module, combined with high-density filter mesh, each end of the installation of a non-reflux valve can reverse Impurities, to the role of drying filter,that can effectively filter residual water and debris in the system.
- Small spherical particles of high strength sintered desiccant module,to make run-time without shock and friction,reduce wear of the desiccant
- High moisture and acid removal capacity
- Drying and filtering effect of combining,both ends of the installation of a non-reflux valve,two-way operation can intercept stolen goods
- Filtration:20microns
- With minimum pressure drop design allows the system to play better energy efficiency in the run-time
- Corrosion resistant epoxy powder paint finish.salt spray test above 500 hours
- Two kinds of connection methods: ODF and SAE;In order to facilitate welding, ODF adoption of TP2 copper reserve.
- For a variety of refrigerant
- Maximum working pressure:4.7Mpa/680Psig.
- Ul listed

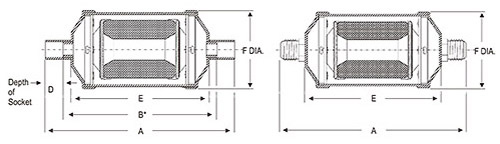

| MODEL |
CONNECTION(IN) |
A(IN) |
B(IN) |
C(IN) |
E(IN) |
F(IN) |
| TFK-052 |
1/4 SAE |
5.06 |
…… |
…… |
3.33 |
2.50 |
| TFK-052S |
1/4 ODF |
4.74 |
3.52 |
0.61 |
| TFK-053 |
3/8 SAE |
5.49 |
…… |
…… |
| TFK-053S |
3/8 ODF |
4.82 |
3.56 |
0.63 |
| TFK-082 |
1/4 SAE |
5.83 |
…… |
…… |
4.06 |
| TFK-082S |
1/4 ODF |
5.47 |
4.25 |
0.61 |
| TFK-083 |
3/8 SAE |
6.22 |
…… |
…… |
| TFK-083S |
3/8 ODF |
5.55 |
4.29 |
0.63 |
| TFK-084 |
1/2 SAE |
6.38 |
…… |
…… |
| TFK-084S |
1/2 ODF |
5.61 |
4.37 |
0.62 |
| TFK-163 |
3/8 SAE |
6.59 |
…… |
…… |
4.43 |
3.00 |
| TFK-163S |
3/8 ODF |
5.75 |
4.67 |
0.54 |
| TFK-164 |
1/2 SAE |
6.75 |
…… |
…… |
| TFK-164S |
1/2 ODF |
5.81 |
4.74 |
0.54 |
| TFK-165 |
5/8 SAE |
7.19 |
…… |
…… |
| TFK-165S |
5/8 ODF |
6.00 |
4.82 |
0.59 |
| TFK-167S |
7/8 ODF |
6.87 |
4.82 |
1.02 |
| TFK-303 |
3/8 SAE |
9.51 |
…… |
…… |
7.34 |
| TFK-303S |
3/8 ODF |
8.84 |
7.58 |
0.63 |
| TFK-304 |
1/2 SAE |
9.67 |
…… |
…… |
| TFK-304S |
1/2 ODF |
9.00 |
7.66 |
0.67 |
| TFK-305 |
5/8 SAE |
10.10 |
…… |
…… |
| TFK-305S |
5/8 ODF |
9.23 |
7.74 |
0.75 |
| TFK-306 |
3/4 SAE |
10.45 |
…… |
…… |
| TFK-306S |
3/4 ODF |
9.31 |
7.74 |
0.79 |
| TFK-307S |
7/8 ODF |
9.78 |
7.74 |
1.02 |
| TFK-309S |
1-1/8 ODF |
10.00 |
7.89 |
1.06 |
