TFD Series Solid Core Suction Line Filter Drier
Product Introduction
- TFD series solid core suction line fitler drier. using high-quality compression of small spherical particles sintered desiccant module,combined with high density filter mesh,for drying and filtration.It can effectively filter system residues of water and debris.Large diameter shell and bigger core can provide bigger filter area and reduce the pressure drop.
- Small spherical particles of high strength sintered desiccant core, no shock and friction in the run-time, reduce wear of the desiccant
- Capable of dissolving pollutants such as moisture and acid
- Combination of drying and filtration
- Dual access valves simplify pressure drop measurement
- Filter density:20microns
- Large outside diameter design can reduce to a minimum pressure drop
- Powder paint exterior coating surpasses 500 hour salt spray test
- Connector type: SAE and ODF.Reserved TP2 copper tube for the convenience of our customers welding ODF
- For a variety of refrigerant
- Maximum working pressure: 3.5Mpa /500Psig
- Ul listed

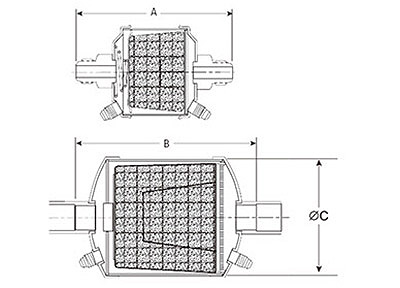

| MODEL |
CONNECTION(IN) |
A(IN) |
B(IN) |
C(IN) |
| TFD 8-3 |
3/8 SAE |
5.13 |
…… |
3 |
| TFD 8-3S |
3/8 ODF |
4.31 |
3.13 |
| TFD 8-4 |
1/2 SAE |
5.38 |
…… |
| TFD 8-4S |
1/2 ODF |
4.44 |
3.13 |
| TFD 8-5S |
5/8 ODF |
4.66 |
3.16 |
| TFD 8-6S |
3/4 ODF |
4.72 |
3.16 |
| TFD 8-7S |
7/8 ODF |
4.72 |
3.16 |
| TFD 13-5 |
5/8 SAE |
5.82 |
…… |
4 |
| TFD 13-5S |
5/8 ODF |
4.91 |
3.45 |
| TFD 13-6S |
3/4 ODF |
4.97 |
3.45 |
| TFD 13-7S |
7/8 ODF |
4.97 |
3.47 |
| TFD 13-9S |
1-1/8 ODF |
5.72 |
3.47 |
| TFD 27-7S |
7/8 ODF |
6.97 |
5.47 |
| TFD 27-9S |
1-1/8 ODF |
7.72 |
5.47 |
| TFD 54-11S |
1-3/8 ODF |
12 |
9.17 |
| TFD 54-13S |
1-5/8 ODF |
12 |
9.17 |
