Product Introduction
Time Delays
- UL & CUL approvals
- Max.load: 1.0amp, 10amp inrush
- Protection from short cycling of compressor
| ITEM NO. |
TYPE DELAY |
TIME DELAY RANG |
TYPE OF ADJUSTMENT |
INPUT VOLTAGE |
INPUT Hz |
MAX AMPS |
VOLTAGE DROP |
| TD-291 |
on make |
1.8 sec…10min |
dial |
18-240VAC |
50/60Hz |
1 |
2.5 at 1 amp. |

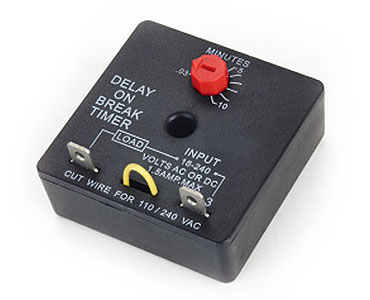

| TD-392 |
on break |
1.8sec… 10min |
dial |
18-240VAC |
50/60Hz |
1 |
2.5 at 1 amp. |
| TD-393 |
off delay |
2 min fixed |
- |
24VAC |
50/60Hz |
1 |
2 at 1 amp. |
| TD-395 |
by-pass |
6sec… 8min |
dial |
19-240VAC |
50/60Hz |
1 |
2 at 1 amp. |
