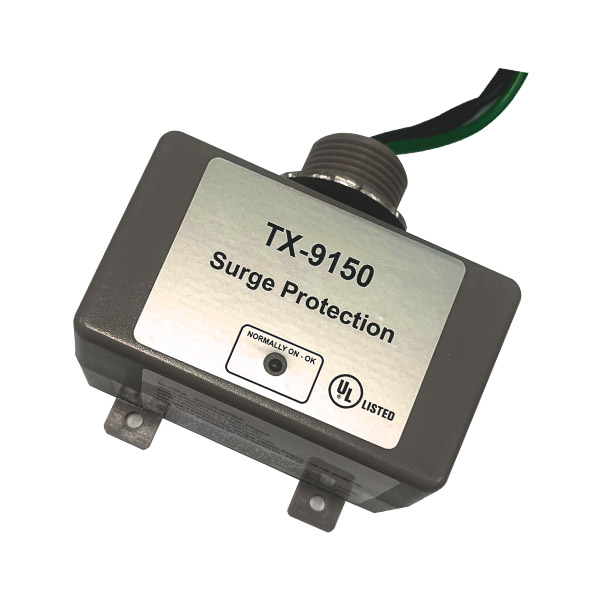

SURGE PROTECTIVE DEVICE
UL Approval
| Part No. | TX-9150 |
| Certification | ANSI/UL1449 4th, Type 1 SP |
| Connection Type | Parallel Connected |
| Ports | 1 |
| Surge capacity per phase | 50kA |
| Nominal discharge current (In) | 10 kA |
| Short-circuit current rating (SCCR) | 200kArms |
| Power Status Indication | Normal= GREEN LED ON |
| Working Status Indication | Fail=LED Off |
| Power Connecting | #12 AWG, 450mm (18.00"") length L (or N)=black; PE=green |
| Working environments | Temperature -40°C ～ +75°C, Humidity relanve 5~95%(25°C), Altitude≤3km |
| Dimensions, W x D x H | 88.1 x 47.8x 88.2 |
| Enclosure | Plastic enclosure, NEMA 4X |
